Friday 26 January 2018

Meet the amateur astronomers who track secretive spy satellites for fun

Somehow I totally forgot to post this here: but after the Zuma launch and subsequent rumours of a failure made headlines, I was interviewed by Mary Beth Griggs of Popular Science magazine. It resulted in a very nice article about our amateur tracking activities, that you can read here.

Monday 22 January 2018

TOPAZ/FIA Radar 5, the NROL-47 payload

click image to enlarge
The small streak in the center of the image above in a bright blue, partially cloudy twilight sky, is TOPAZ/FIA Radar 5 (2018-005A, 43145), the NROL-47 payload (see a previous post) imaged in evening twilight of 19 January 2018 with the sun at only 8 degrees below the horizon and the satellite at 24 degrees elevation in the northwest.

NROL-47 was launched on 12 January 2018, a week before the photo above was taken. Shortly after launch, Cees Bassa and Scott Tilley already detected the payload by radio, determining a preliminary orbit from the Doppler curves with an orbital altitude near 1057 km and inclination near 106 degrees.

The first optical observations were done in the evening of January 14th, two days after launch, by Cees Bassa in the Netherlands, after which it was picked up by a number of other observers as well (amongst others Leo Barhorst in the Netherlands, Greg Roberts in South Africa and Paul Camilleri in Australia). The latest optical observations have improved the orbit for this new satellite and show it is in a 1048 x 1057 km, 106.0 degrees inclined orbit.

The payload was making very low (11-12 degrees maximum elevation) twilight passes in the north during the first few days after launch for my locality, where I have obstruction from buildings. Passes gradually climbed higher in the sky over the week, but also deeper into twilight. Combined with dynamic weather, I started to lose hope of imaging it, but finally was succesful in the evening of 19 January. I had a 24 degree maximum elevation pass in the southwest near 17h UT, with the sun barely 8 degrees below the horizon. The pass was high enough to clear rooftop level near culmination.

The weather was again very dynamic that evening, with fields of clouds forming as soon as the sun set. Using the 1.4/85 mm lens, I took a series of images while clouds were moving in fast. Due to the very bright sky background, I was restricted to 1 second exposures at 400 ISO.

After a first quick cursory check of the images on the camera's LCD screen I initially thought I had lost the battle against clouds and twilight. But upon a more thorough inspection on my laptop a day later, it turned out it was in the images after all, and with enough reference stars to get some decent astrometry from the images.

The payload is in a new orbital plane for TOPAZ/FIA Radar satellites. While all previous four TOPAZ/FIA Radar satellites are in a 123.0 degree inclined orbit, this new TOPAZ/FIA Radar 5 is in a 106.0 degree inclined orbit.

I had already inferred a new orbital plane for this satellite pre-launch (see a previous post), based on the launch azimuth, which deviated from that of previous TOPAZ/FIA Radar launches from Vandenberg. The new 106.0 degree orbital plane is within 2.5 degrees of my original pre-launch estimate. The orbital altitude is somewhat lower than I initially estimated.

click to enlarge

click to enlarge

Operating in two orbital planes was also the case of a previous series of radar satellites, the Lacrosse (ONYX) satellites, of which currently only Lacrosse 5 is still in orbit. These operated in two orbital planes, at 68 and 57 degrees orbital inclination.

The 123.0 degrees orbital inclination of TOPAZ/FIA Radar 1 to 4 is the retrograde equivalent of the 57 degree inclination of the Lacrosse constellation. The new 106 degree orbital inclination is however not the equivalent of a 68 degree inclination.

The current TOPAZ/FIA Radar 5 orbital altitude of 1048 x 1057 km is slightly lower that that of the previous four TOPAZ/FIA Radar satellites, which orbit at ~1100 x 1110 km. However, it is not unlikely that over the coming weeks the orbit will be further raised to a similar altitude.

Unfortunately, I am now losing visibility of the object as the higher passes occur deeper and deeper in twilight.

TOPAZ-5 is the last of the block I TOPAZ payloads. The new 106.0 degree inclined orbital plane might be the new orbital plane for the block II payloads to be launched over the coming years.

Thursday 11 January 2018

[Updated] A potential use for satellites in Zuma-like 50-degree inclined orbits



SpaceX's launch of the Zuma satellite on 8 January was interesting, and not just because of the ongoing saga of whether it failed or not (see a previous post).

The odd 50-degree orbital inclination is another element that made this launch interesting (see discussion in my pre-launch post here: sightings of the Falcon 9 Upper Stage over Sudan after launch later confirmed this orbital inclination).

New ideas started to form post-launch after the Falcon 9 sightings from Sudan made me realize that while it indeed was launched into a 50-degree inclined orbit, the orbital altitude (900-1000 km apogee) was higher than I initially expected, making a proposed link to USA 276 unlikely.

And then @Cosmic_Penguin posted this small message thread on Twitter, referencing this interesting publication. That struck a chord and reinforced an emerging idea about a potential role for satellites in such 50-degree inclined, ~1000 km altitude orbits.

As @Cosmic_Penguin notes, the publication specifically discusses ~50-60 degree inclined, ~1000 km altitude orbits. And it is all about Space-based Radar.


I had just been looking into the coverage of the Zuma orbit, and it lines up with content in that report.

The map below is a ground coverage map of Zuma, would it have been alive and well. One of the uses of a ~50 degree inclined ~1000 km altitude Space Based Radar satellite mentioned in the report, is for shipping surveillance.

Indeed, a satellite in a Zuma-like orbit would basically cover all Ocean surfaces, except for the high Arctic and Antarctic, which are not that interesting for the purpose discussed below (moreover, the Arctic is extensively covered by groundbased and airborne radar).


click map to enlarge

A (Radar) satellite in this kind of orbit therefore would be very useful to keep track of illicit shipping movements on the High Seas.

Think stuff like embargo-runners, e.g. embargo-breaking shipments of coal and oil to for example North Korea, illegal weapons exports from North Korea, oil exports from Syria, illicit weapons transports to the Middle East, and human trafficking as well as drugs shipments.

Ships engaged in such illegal activities sometimes turn off their transponder, making it harder to track their whereabouts once out of sight of landbased shipping radar (see also the story about one particular embargo-breaking ship here). The classified US NOSS duo ELINT satellites and similar Chinese Yaogan triplets are meant to track ships from passive radiosignal crosslocation, but when a ship displays strict radio silence, these systems will not detect them either. But Space-Based Radar will.

Embargoes have become an important geopolitical tool when outright war is deemed not an alternative. We currently see embargoes enforced with regard to for example Syria and North Korea. Means to enforce embargoes including detecting and stopping potential embargo violations therefore have become important. Human trafficking and drugs trafficking are growing geopolitical problems as well.

So was Zuma meant to be an (experimental, i.e. a technology demonstrator) version of such a Space Based Radar for Ocean shipping surveillance? It is an option.

What might argue against it is the extreme secrecy surrounding the launch. Very few details were made public about the Zuma payload, the Agency operating it was not disclosed, and the launch was announced very late.

For all of this, explanations can be sought, but that admittedly all is "special pleading". For example, maybe the secrecy is there because the mission involves cutting edge experimental Radar technology. Or the secrecy could simply be the result of the "secrecy cult" in some parts of the US Government going over the top. Or it could point to operation by an Agency that wants to keep this operation on the down low - e.g. the CIA. And I can think of a few more - much more outlandish, which is why I won't mention them here - potential reasons.

We have seen this kind of secrecy before with PAN (and its later sister ship CLIO), with Prowler, and more recently with USA 276. All of these were experimental satellites doing unusual things: PAN roved between, snug up to and eavesdropped on commercial geostationary satellite telephony satellites. Prowler was an experiment for covertly inspecting other geostationary satellites on-orbit. And USA 276 remains mysterious but a series of very close encounters to the International Space Station suggest it might be a technology demonstrator for observing rendez-vous manoeuvres in space.

Zuma (the more so now it might have failed) also strongly brings the infamous USA 193 satellite to mind, although there we do know that it was a satellite for the NRO, and likely an experimental radar satellite [edit: see added note 2 below].

Nevermind what Zuma really was meant to be, and who was to operate it: the message to take home is that High Seas shipping surveillance is a potential and viable role to keep in mind for any future satellite launched in a ~1000 km altitude, ~50 degree inclined orbit.


Added note 1: Cosmic Penguin pointed out to me that this was also earlier brought up in a forum post by Ed Kyle.

Added note 2, 12 January 2018:  This article suggests Zuma might be an electro-optical/SAR hybrid and a follow-on to the infamous USA 193:

"Second, the Northrop Grumman satellite may be a follow-on to another failed satellite US 193. [...] ...., a source with direct knowledge of the program told me it was a blend of radar and electro-optical and would not provide any more detail than that. A source with wide knowledge of classified space programs has told me that the Northrop Grumman-built Zuma may be the next iteration of this. Both were apparently experimental satellites, in that they were not part of a large constellation of similar satellites."

Such a spacecraft would be well suited for the purpose indicated in this blog post.

Also, Northrop-Grumman, the company that built Zuma, has actually worked on developing ideas for Space Based GMTI Radar, which again would suit well to the purpose I suggest in this blog post.


Acknowledgement: Hat Tip to @Cosmic_Penguin on Twitter for putting ideas into my brain.

Wednesday 10 January 2018

What is NROL-47 and in what orbit will it be launched? [updated twice]



UPDATE 10 Jan 17:25 UT: The launch has been scrubbed due to high altitude winds, and moved one day to Jan 11. New start of launch window is given as 1 pm PST = 20:00 21:00 UT. This means the launch window is shifting, indicating a prefered orbital plane and launch probably right at the start of the launch window.

Update 12 Jan: The launch was again scrubbed yesterday, and is now slated for January 12, 21:00 UT . My remark about a  shifting launch window above was in error, I missed that the Maritime Broadcast Warning window opens somewhat before the actual launch window opens.

Final Update , 12 Jan: NROL-47 successfully lifted off from Vandenberg SLC-6  at 22:11 UT!

Final Update 14 Jan 2018: Amateur observers using radio have located NROL-47 in orbit. It is transmitting in the TOPAZ frequency, 2241.52 MHz. The orbit is still very preliminary but appears to point to ~1100 km orbital altitude and an orbital inclination of ~105-106 degrees. This would identify NROL-47 as a new TOPAZ, but in an orbital plane that differs from the previous four TOPAZ satellites. Due to bad weather at the observing sites of several of our active observers (I was clouded out yesterday evening myself for example), optical observations have not yet been reported.


Hot after the excitement and drama of the Zuma launch (see my previous post), a new classified launch is upcoming on Wednesday January 10, when ULA will launch NROL-47, a classified payload for the National Reconnaissance Office (NRO), on a Delta IV from Vandenberg SLC-6 in California.

From Maritime Broadcast Warnings, the launch window opens at 20:30 UT and closes at 01:26 UT. [edit 1] After a one-day delay due to weather conditions, the launch is now slated to be on the 11th of January with the launch window opening 21:00 UT. The shifting launch window time indicates a launch into a preferred orbital plane, and it is likely that launch will be right at the opening of the launch window. [end of edit 1] [edit 2] This launch was scrubbed as well, and launch is now slated for 12 January 21:00 UT [end of edit 2]

The launch is in Westward direction, into retrograde orbit. This has led some space news websites to assume that the NROL-47 payload is the 5th TOPAZ (FIA Radar) satellite.

But is it? I have some doubts.

If it is TOPAZ 5, then it is clearly a deviation from the previous four launches. The launch hazard zones from published Maritime Broadcast Warnings show that the launch azimuth is different - previous TOPAZ missions all launched into azimuth 220 degrees, but NROL-47 launches into azimuth 200 degrees, a 20 degree difference.

NROL-47 Launch hazard areas (red) compared to the areas of four TOPAZ (FIA Radar) launches
click map to enlarge

This can be clearly seen on the map above, where the NROL-47 hazard zones are in red, and the hazard zones from the four TOPAZ in purple, green, light blue and dark blue. The azimuth and locations of the zones from the four TOPAZ launches are all quite similar, but those of NROL-47 stand out as different.

All the four TOPAZ satellites are in a 123.0 degree inclined retrograde orbit. The NROL-47 launch azimuth results in a retrograde orbit too, but with an orbital inclination of 108.6 degrees, not 123.0 degrees: a 14.4 degree difference.

The orbital altitude aimed for appears to be different too. The four TOPAZ satellites are in 1100 x 1110 km orbits. But the location of the Delta IV Upper Stage de-orbit zone (between South Africa and Antarctica), its shape and the opening time of the window (23:23 UT) points to the NROL-47 payload going into a 1500 km altitude orbit instead.[edit: from the first post-launch radio observations (see update in top of this post), the payload actually appears to be in a ~1100 km orbit, similar to previous TOPAZ: but indeed in a different orbital plane than the previous TOPAZ - end of edit]

estimated trajectory of NROL-47
click map to enlarge
So if this is the 5th TOPAZ launching as NROL-47 on Wednesday, then it is going into a quite different orbit compared to the previous four TOPAZ: different in orbital inclination as well as in orbital altitude.

In theory, the Delta IV rocket could do a "dogleg" and (when launching at 20:30 UT) deliver the NROL-47 payload into the 123.0 degree inclined orbit close to the orbital plane of TOPAZ 1 (FIA Radar 1). A second manoeuvre near the south polar pass could then align the RAAN and bring it exactly into the orbital plane of TOPAZ 1.

But why do that, if previous TOPAZ launches simply launched directly into the 123.0 degree inclination orbit?

So in my view, the jury is still out regarding the identity of NROL-47. It could be a 5th TOPAZ but in a quite different orbit compared to the previous four (in itself possible: the Lacrosses also occupied two different orbital inclinations). It could also be something new. If something new, it likely will be a radar satellite (like TOPAZ), given the retrograde character of the orbit. [edit - from radio observations, it appears to be a TOPAZ, but in a different orbital p;lane than the earlier TOPAZ -end of edit]


orbital constellation of TOPAZ 1, 2, 3 and 4 in 123.0 degree inclined orbits
The orbits are spaced 90 degrees in RAAN
click image to enlarge

The deliberate re-entry of the Upper Stage happens 1.5 revolutions (2h 55m) after launch.

Estimated search orbits, based on a 108.6 degree orbital inclination, are here. New elset estimates for the new launch date and time are here. South Africa will have two visible passes after launch.

An UPDATE on this post, with post-launch imagery of the payload in orbit, is here.

Tuesday 9 January 2018

Fuel dump of Zuma's Falcon 9 Upper Stage observed by a Dutch pilot over east Africa (and rumours that Zuma failed)

image (c) Peter Horstink, used with permission
click image to enlarge

The spectacular image above was taken by Peter Horstink, the Dutch pilot of a Boeing 747-400 freighter aircraft (Martinair Holland flight MPH8371 from Amsterdam to Johannesburg), around 3:15-3:20 UT on January 8. The aircraft was flying at 35000 feet just north of Khartoum, Sudan, at that moment, which can be seen in the foreground (the yellow lights). The image above is the first one out of four images taken by Horstink.

The spectacular green-blue "spiral" on the image is, given time and location and character, almost certainly the Falcon 9 Upper Stage from the launch of the classified Zuma satellite that day (see my earlier post here), depressurizing and venting fuel at the end of its de-orbit burn. Some 15-25 minutes later, it would re-enter in its designated re-entry zone in the southern Indian Ocean (see map below).

Horstink described his observation as follows (translated from his Dutch e-mail report):

"It started with a greenish light in the top of my front window. At first I thought it was a reflection from some lightsource behind me, but it turned out not to be. At about 218 UTC [this later turned out to be a mistake and must read 3:18 UTC: the aircraft passed Khartoum near 3:25 UTC - ML] with a  very clear sky and with Khartoum in our sight, a point of light (like a star but somewhat bigger) moved from above us to South of us. It moved slower than a usual satellite but clearly did move. I estimate we saw it for 2-3 minutes. The waning moon crescent at that time was almost right above us. The object was surrounded by a greenish glow in the shape of spiral arms, like a spiral galaxy. Two of them, which didn't seem to move much. The total  size of the phenomena was about three times the diameter of the moon."
(note that when measured from the photographs using the star background as a reference, the actual diameter of the spiral cloud is about 11 degrees. The cloud is at ~8 degrees elevation over the horizon, near azimuth 155 degrees. The two bright stars to the right of the cloud are alpha and beta Centauri ).

The map below gives my estimated trajectory for the Falcon 9 Upper Stage, with apogee at ~900 km. It fits the area of the sighting, the launch hazard zone direction and the de-orbit zone position (from Maritime Broadcast Warnings) in the Indian Ocean. The Falcon 9 Upper Stage should have re-entered into the atmosphere between 3:30-3:45 UT, about 30 minutes after the  window from the Maritime Broadcast Warning opened at 3:00 UT.

click map to enlarge

The sighting points to a somewhat higher orbital altitude for Zuma than I had anticipated before the launch: with hindsight, I had too much of an idée-fixe that the orbital altitude would be similar to that of USA 276. The Falcon 9 sighting over East Africa suggests an altitude over double as high, in the order of 900-1000 km rather than my original 400 km estimate.

The sighting does confirm the 50-degree orbital inclination of the orbit. A new estimated elset based on this revision of the orbital altitude is here.

The map below shows the (very) approximate position of the aircraft at the time of Peter Horstink's observation relative to the Falcon 9 trajectory (times in UT, January 8th 2018). The aircraft was flying on a heading of 170 degrees, and Horstink gives his position as "between waypoint Alpox and Khartoum VOR" which corresponds to about 16.38 N, 32.35 E. The Falcon 9 Upper Stage was coming down at an altitude in the range of 200-400 km at that time. Approximate positions for the Falcon 9 Upper Stage are indicated in 2-minute intervals:

click map to enlarge

Horstink made the image above and below plus a few more with a handheld camera, from the cockpit of the aircraft.

image (c) Peter Horstink, used with permission
click image to enlarge
Horstink's observation is not the only observation. Very similar photographs showing a spiral in the sky have been coming from the ground in Sudan, e.g. in this tweet:




image from the ground, from Sudan (author unknown)

On rumours that Zuma failed

The sightings from Sudan near 3:15-3:20 UT are significant, as in the late afternoon of the 8th, rumours appeared on Twitter of a Zuma launch failure. These rumours then were picked up by some news outlets, e.g. here and here.

I have no idea about the veracity of these rumours, and so far SpaceX has said the mission was "nominal" (indicating no problems with the Falcon 9), while Northrop-Grumman and the US military haven't given comments (they never do about classified mission status). They could very well just be rumours, perhaps born out of a misunderstanding of events in the launch seen from the ground by lay observers.

For the moment, unless the US Government comes with some statement, I think it is wise we should treat it as "just rumours", and not necessarily true.

The sighting of the Falcon 9 Upper stage venting 2 hours 15 minutes (1.5 orbit) after launch, bear significantly on the discussion, as it seems to confirm the remarks by SpaceX that the mission was nominal. Of course, for SpaceX the mission ends at orbit insertion.

At any rate, it shows that at least the Upper stage achieved orbit (so it was definitely not a launch failure where the rocket failed to achieve orbit), and it makes sense that the payload then did as well.

So if something went wrong, if at all (a big "if" - I am skeptical), then there are three options left:

(1)  Zuma was inserted into orbit, but it is in the wrong orbit (too high, too low);

(2)  Zuma was inserted into orbit, but is "dead", i.e. non-responsive;

(3)  Zuma achieved orbit with the Upper Stage, but failed to detach from the Upper Stage, and next de-orbitted with the Upper Stage near 3:30-3:45 UT.

JSpOC ("NORAD") did enter an object from this launch into its master catalogue on January 9th, as object nr. 43098, COSPAR 2018-001A, name USA 280. They designated it "PAYLOAD" (and the USA 280 designation would point to this as well). As usual for classified missions, they do not give details on the orbit.

screenshot showing the JSpOC master catalogue entry for a "PAYLOAD" named USA 280 associated with the launch

This suggests something achieved orbit long enough (i.e. over more than one orbit) to be detected and added to the catalogue.

While this does not necessarily mean the object is still in orbit (and it could in theory reference the Falcon 9 Upper Stage, with the "PAYLOAD" designation then in error), it does fuel my skepticism towards the truth of the rumours.

If Zuma is on-orbit but did fail, the situation becomes reminiscent of the USA 193 saga - an experimental satellite launched in December 2006 that failed after orbit insertion, and a year later was shot out of the sky with an SM3 missile, which has become infamous as "Operation Burnt Frost".

With regard to the observed fuel dump/depressurization: this is normal for most launches and does not necessarily indicate something's wrong.

Rocket stages always carry excess fuel, as you don't want the engine to cut out prematurely by running out of fuel. So it always has a sufficient fuel margin. Once its work is done, this excess fuel is often vented, also known as "depressurization".

[update] An earlier example of such a spiral resulting from a Falcon 9 venting fuel after launch into LEO, is this one from a SpaceX Falcon 9 test launch of a DRAGON in 2010. So this event over Sudan is not unusual. [end of update]

Depressurization and fuel venting avoids the risk of the rocket stage blowing up, for example as a result of static electricity building up in the rocket stage. You do not want your rocket stage to blow up, as it creates an uncontrolable swarm of debris and includes the risk that particles are ejected into orbits where they do not decay quickly,  adding to the space debris risk.

The spiral pattern results when the rocket stage is spinning, perhaps as result of the fuel vent.

At the moment, Zuma is not visible from the Northern hemisphere because all passes are in daylight or earth shadow. This will change 1-2 weeks from now, depending on the exact orbital altitude. The sighting from Sudan does confirm the orbital plane the object should be in (that is: unless it did a manoeuvre into another orbital plane after separation from the Falcon - but I doubt that). So we have to wait now untill a new object is observed in this orbital plane.

The hunt is on!


UPDATE: some news sources are now claiming sources within the US military and US Government confirm the failure, saying the second stage of the Falcon 9 "failed" and stage and satellite crashed into sea.

This does not tally with the observations over Sudan, which show the Upper Stage did reach orbit. So my skepticism remains. If there is some truth to it nevertheless, it could point to option (3) above and subsequent misinterpretation in the press.

UPDATE 2: the adapter mating ZUMA to the Falcon 9 Upper Stage was not made by SpaceX, but by Northrop-Grumman itself (which is somewhat unusual). So if ZUMA did not separate from the Falcon 9 (and did a dive into the Indian Ocean with it), the blame is not on SpaceX but on Northrop-Grumman. In that case, the SpaceX declaration that the Falcon 9 performed "nominal" is correct, even if Zuma did not separate from it.

UPDATE 3 (17 jan 2018): It turns out that a ~52 degree inclined, ~660 km altitude orbit also fits the constraints of the de-orbit area and being over East Africa at the right time. So we are adding that option to the search efforts. I did a partial plane scan of the 50-degree orbital plane two days ago.

click map to enlarge

Ackowledgement: I thank Peter Horstink for his report, for providing additional information on request, and for the permission to feature his images on this blog. I thank Govert Schilling for bringing me into contact with Peter Horstink. The photographs with this post are (c) Peter Horstink.

Thursday 4 January 2018

A new launch attempt for ZUMA [updated twice]


Probable launch trajectory of ZUMA
(click map to enlarge)

 UPDATE 1 4 Jan 2018 22:00 UT: The launch has again been postponed by one day, to January 7th (January 6 local time)

 UPDATE 2 5 Jan 2018 14:00 UT: The launch has yet again been postponed by one day, to January 8th (January 7 local time) and I have partly rewritten this post to reflect this.

UPDATE 3 11 Jan 20:00 UT: a follow-up post reflecting my changed thinking on what Zuma could be now we know it targetted a ~900-1000 km orbit, is here

****

[text updated/rewritten twice to reflect launch postponements]

If it isn't delayed even further, SpaceX will finally launch the secretive classified ZUMA satellite for the US Government on January 8th (January 7th local time in the USA) from Cape Canaveral pad 40 in Florida. The launch already has slipped three days from the initial January 5 aim.

The satellite was originally to be launched last November (see an earlier post) from Kennedy Space Center pad 39A but was postponed because of  issues with the payload fairing.

The launch hazard zones and the Falcon 9 upper stage de-orbit zone as gleaned from the Maritime Broadcast Warnings are virtually the same as in November, as was to be expected (there is a very small lateral shift in the launch hazard zone, which is probably related to the change in launch pad, but the direction of the area is the same). They are depicted on the map above.

From the launch azimuth (as gleaned from the launch hazard zones) and the location, extent and time window of the Falcon 9 upper stage de-orbit area, ZUMA will be launched into an approximately 50 degree inclined Low Earth Orbit. In the map above, a trajectory has been plotted for launch into a 50 degree inclined, approximately 400 km orbital altitude orbit. The orbital altitude is a bit uncertain and the eventual real orbit might be higher. [update: it probably is twice as high, from post-launch info discussed in a new post here]

The launch window runs from 1:00 UT to 3:30 UT (January 8th). The de-orbit of the Falcon 9 Upper stage happens some 2 hours after launch over the southern Indian Ocean north of Kerguelen, halfway during the 2nd orbital revolution.

As remarked in my earlier post from November, the launch hazard area and the apparent orbit aimed for as decuced from these hazard zones seem to be very similar to that of USA 276, the classified SpaceX launch for the US government from May 2017 which went into a 50 degree inclined, 400 km altitude orbit (see my article in The Space Review of July 2017). Compare the launch hazard zones of these two launches, they are very similar:

Launch hazard area of ZUMA (red) compared to that of USA 276 (blue)
(click map to enlarge)

Back in November there was some speculation that ZUMA might target the ISS orbital plane, just like the odd classified satellite USA 276 appears to have done last year (see my article in The Space Review of July 2017).


[the now following paragraphs have been heavily editted to reflect the situation change brougth on by the repeated launch delays. I retained some of the original text in striken-out grey for reference]

Another option is that it targets the plane of USA 276. For the initial launch date and window in November 2017, the orbital plane of  USA 276  would have passed over the launch site during the launch window, allowing a launch into the same orbital plane. After several days delay of the launch, the launch was postponed to January after the USA 276 orbital plane moved out of the launch window.

The new launch window for January 8th is the same as it was in November: 1:00 UT to 3:30 UT.

This excludes a launch (exactly) into either the ISS or USA 276 orbital planes, as the latter only pass over the Florida launch site after the launch window has ended.

This means launch into the orbital plane of USA 276 has become viable, as the latter's orbital plane passes over the launch site near 3:38 UT on January the 8th, only minutes after the end of the launch window. Note that for the original January 5 launch date, this was not possible.


This would seem to suggest that the coincidence in time of the launch window and orbital plane passages in November was indeed coincidence (but there is a "but": see below...).

[Edit 4 jan 22:00 UT: or maybe not. There are new delays, launch has now shifted to January 7 UT (January 6 local time) and passage through the USA 276 orbital plane is now very close to the end of the launch window. And it will shift into the launch window if more delays occur.]

On January 6th, the orbital plane of USA 276 passes over the launch site around 4:27 UT, an hour after the end of the launch window. The orbital plane of the ISS passes over the launch site around 7:04 UT, some 3.5 hours after the end of the launch window.

The image below shows the spatial separation of the orbital planes for launch on January 8th (January 7 local time).  For ZUMA, two planes are given (in red), one for launch at 1:00 UT and one for launch at 3:30 UT, representing the start and end of the launch window. The orbital planes for a 3:30 UT launch (end of launch window) and USA 276 (blue) almost coincide:

Relative orbital plane positions for ZUMA (red), USA 276 (blue) and the ISS (white)
Image has been updated twice
(click image to enlarge)



The launch already has slipped three days, and a few days more delay would slip the passage of the USA 276 orbital plane increasingly forward into the launch window, as the moment of orbital plane passage shifts about 24 minutes earlier in time each day. And a further delay eventually would do the same for the ISS orbital plane passage after several more days.

The official reason given for the delays of the past few days is "extreme" weather (strong high altitude winds). This might well be true, but there is always a possibility that the delays are a ruse to obfuscate (if that is the case) that the orbital plane of USA 276 is the actual target (there are historic precedents for such a ruse). That however remains speculation (emphasis), and it could well be that the actual launch time, when it happens, will be off from the moment the orbital plane of USA 276 is passed. We will see.

There is therefore very little to say with certainty about the possible function of ZUMA. But ZUMA is likely a technology demonstrator, i.e. an experimental satellite to show that a particular technology is feasible, as we also pressume USA 276 to be. I could (again) speculate that perhaps ZUMA and USA 276 are part of the same experimental program. As these two spacecraft were built by two different companies (Northrop-Grumman and Ball Aerospace), perhaps they are technology demonstrators in competition for a follow-up contract. But this is pure speculation. Many options are open.

Exactly how (if at all) the two satellites are related to each other remains murky. Maybe future orbital behaviour will shed some light on what ZUMA is doing.

For a further discussion of the ZUMA mission, see my earlier post from November 2017. Some TLE estimates for the orbit are here. They are based on the 50 degree orbital inclination gleaned from the launch azimuth, and an assumed ~400 km orbital altitude. [update: post-launch information leads me to think it went into a higher orbit, 900-1000 km, see the link to the new post below]

UPDATE 9 January 2018: a follow up is here, with spectacular images of a fuel vent by the Falcon 9 Upper Stage.

UPDATE  11 Jan: a second follow-up post reflecting my changed thinking on what Zuma could be now we know it targetted a ~900-1000 km orbit, is here.

Tuesday 2 January 2018

2017 in a nutshell

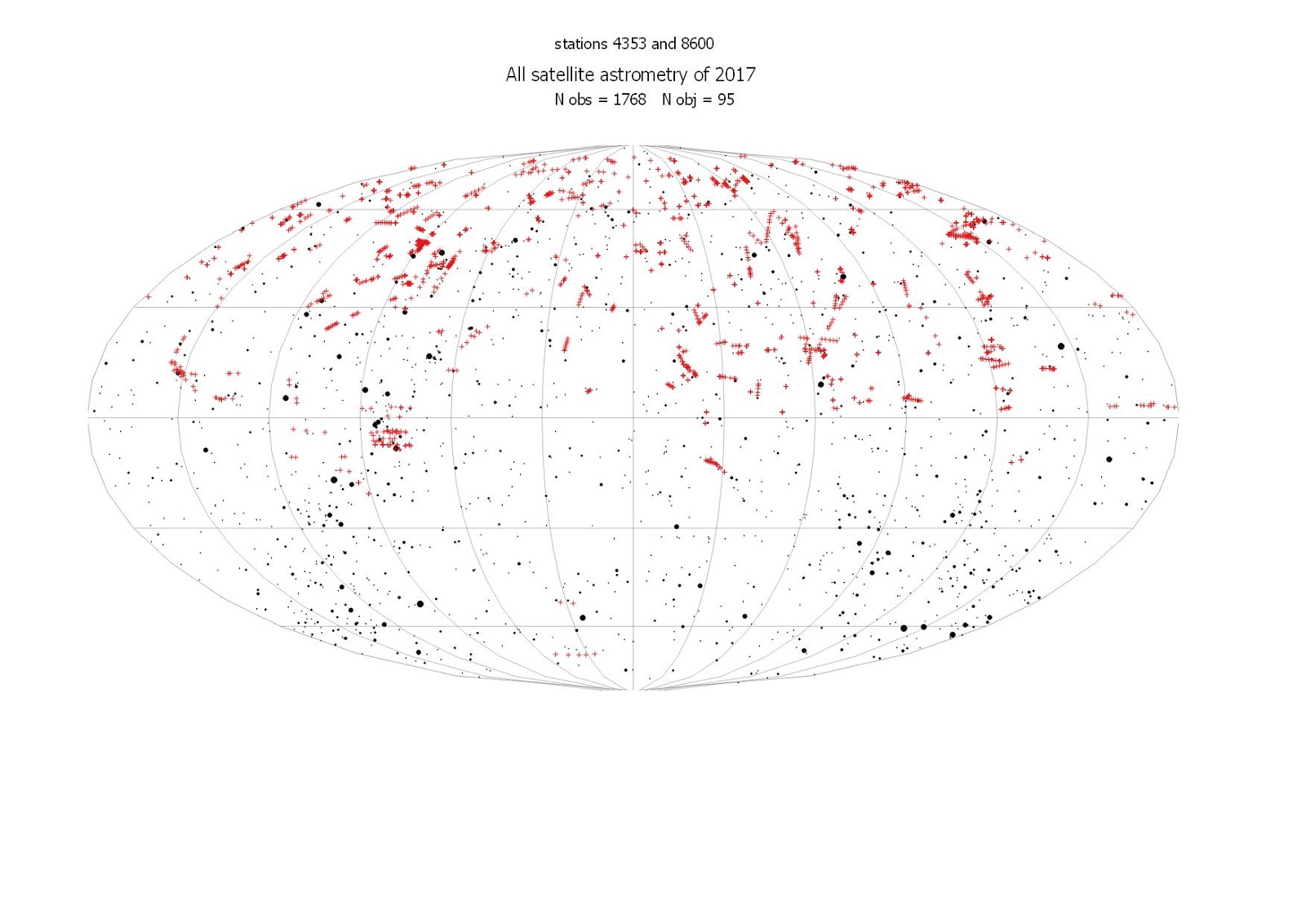

All measured positions of 2017
click map to enlarge

The year 2017 was a good year in as far as my satellite observations are concerned. I measured 1768 positions (see map above), on 95 different objects.

1715 of these were measurements on my own imagery from station 4353. Another 49 were on images taken by Paul Camilleri (station 8600) in Australia; and 4 were on imagery taken by Alain Figer in France. The diagram below shows the distribution of observations over the months.

click diagram to enlarge


The year 2017 was an interesting year, with interesting new avenues and quite some press attention. We chased a couple of new launches, of which NROL-76 (USA 276) was a peculiar one. I also started to give some serious attention to the analysis of North Korean missile tests.

I started to use new video software for the observations of objects in LEO in 2017, which increased the output and the accuracy of positions. Objects in HEO and GEO are still photographically imaged.

Medio 2017 I became a consultant in an interesting Space Situational Awareness project for the Space Security Center of the Royal Dutch Air Force. As part of this project I was temporarily employed at the Department of Astronomy of Leiden University.

In July in The Space Review I published an analysis of NROL-76 (USA 276) and its weird flyby of the International Space Station early June 2017, that generated some press attention. Late 2017, my analysis of  North Korean missile test launch imagery generated press attention too.

In December, I was interviewed by the Volkskrant (a major Dutch newspaper) about whether or not an "Arms Race in Space" was upcoming.

Unrelated to satellites, I was involved in the identification of the 6th meteorite of the Netherlands, Broek in Waterland,an L6 chondrite, in February, which we presented at Naturalis (the Dutch National Museum of Natural History) in June 2017. This resulted in me being a guest in the Live RTL Late Night TV show on national television.

In RTL Late Night with the Broek in Waterland meteorite
All in all, quite a remarkable year!
